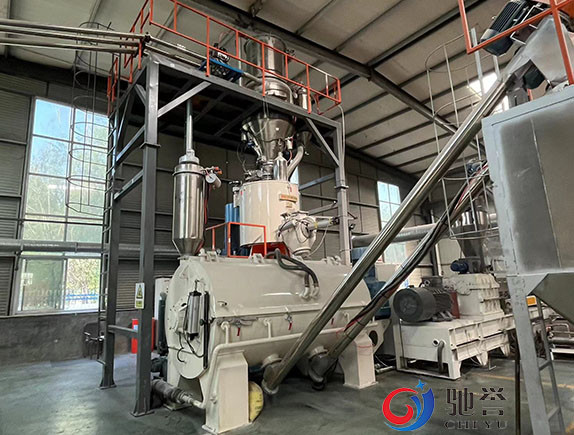

Plastic Mixing Machine PVC Mixer With Vacuum Conveying Dosing System

Name: Plastic Mixing Machine PVC Mixer With Vacuum Conveying Dosing System
Brand: ChiYuMixer
Price: 1000 USD

China Plastic Mixing Machine PVC Mixer With Vacuum Conveying Dosing System factory

Brand Name : ChiYuMixer

Model Number : SRLW800-2500

Certification : 3C,ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD 1000-30000

Payment Terms : L/C, T/T

Supply Ability : 1-5 Sets per Month

Delivery Time : 30-45 work day

Packaging Details : Wooden box,plastic film

Name : Powder mixer

After-sarles Service : Video and online support

Used for : PVC,rubber,chemical,food industry

Motor : Siemens Beide Brand

Capacity : 500-2500kg/hour

Inverter : ABB

Contact Now

Plastic Mixing Machine PVC Mixer With Vacuum Conveying Dosing System

The plastic mixing department is the heart of every PVC processor. Given the large variety of applications and individual recipes, every Dry-Blend has its own challenges.To conquer these challenges and break down any barriers, a highly flexible mixing department is the key factor. Since the 60s, ChiYu has been a global strategic partner for the PVC application manufacturing state of the art mixers for decades.

High Throughput and Superlative Mixing Quality

1.Process-optimized mixing tools for optimum energy input and gently mixing.

2.Vortex-enhancing design of blades and vessels, to ensure 100% homogenization.

3.Newly engineered cooler stirrers for increased cooling performance and better double-batching-performance.

4.Output range from 500 kg/h to 3500 kg/h

Technical data:

Type	Total capaicty litres	Weight per batch kgs	Motor power KW
SHR200	200	90	45
SHR250	250	110	55
SHR300	300	140	75
SHR400	400	180	90
SHR500	500	220	110
SHR600	600	260	132
SHR700	700	310	160
SHR800	800	360	200
SHR1000	1000	450	250
SHR1500	1500	675	355
SHR2000	2000	900	560

ChiYu’s combined heating/cooling mixers are the optimum solution for complex mixing challenges. The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance. The horizontal and vertical heating/cooling mixers are designed for high-volume throughput, rapid processing and short cleaning times.
